Short Description:

Explore our advanced KSW industrial water cooled chiller. Good cooling effect and long service life. Ideal for low-temperature applications (-45°C).


  • Cooling capacity: 2kw~5000kw
  • Compressor type: Screw, Scroll
  • Customised service: explosion-proof, high-precision and other special units can be customised.
  • Origin: China
  • Payment method: TT, LC, etc.

Product Details

Product Tags

Product Description

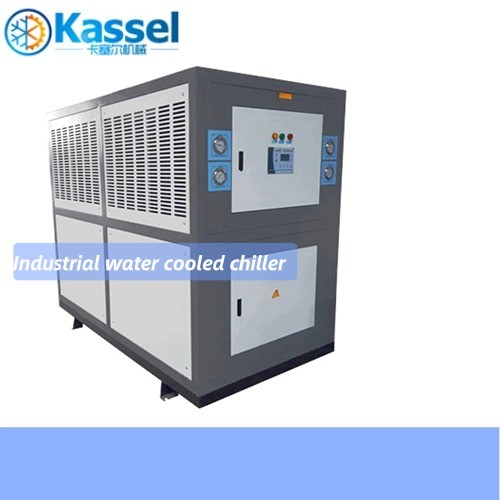

An industrial water cooled chiller is a kind of refrigeration equipment used for cooling, which absorbs heat from the cooled object through the refrigeration circulatory system and discharges it into the surrounding environment to achieve the cooling effect. It is mainly composed of refrigeration systems, cooling systems, control systems, etc. These systems work together to achieve the cooling function of the system.KSW industrial water cooled chiller adopts the design of a fully sealed pipeline, which effectively prevents the leakage of refrigerant, improves the reliability of the system, and reduces the maintenance cost of the enterprise. The compressor of the equipment adopts infinite regulation technology, which means that it varies according to the actual cooling capacity demanded by the outside world to provide the corresponding cooling capacity. This means that the chiller can dynamically adjust the operation of the compressor as needed to meet the actual cooling demand of the system. This intelligent adjustment allows the chiller to operate more efficiently while ensuring that the system delivers the required cooling capacity, thus saving energy and reducing operating costs. The unit can be supplied with -45°C refrigerant and is suitable for a wide range of low-temperature locations.


Features of the industrial water chiller machine

●Adopting the international first-class brand Copeland compressor, which has the characteristics of high efficiency and energy saving, low noise, high stability and high energy efficiency ratio, and long service life

●Adopting HFCI34a, HFC407C and HFC404a high-efficiency and environmentally friendly refrigerants to achieve improved refrigeration efficiency.

●Adopting Danish Danfoss expansion valve, it can precisely control the flow of refrigerant, reduce the pressure of refrigerant, regulate the temperature of refrigerant and maintain the stability of the system. This is an important part to ensure the normal operation of the system and efficient refrigeration.

●Equipped with Emerson filter drier in the refrigeration pipeline, it can effectively remove impurities and moisture in the refrigeration system to protect the normal operation of the system and extend the service life of the equipment.

●The machine adopts modular design, which occupies a small area and is convenient for transport. Each unit modular unit can be operated independently, which is convenient for maintenance and repair.


Technical Specification

Model—KSW 03 05 08 10S 12 15S 20S 25S 30S 40S 50S 60S 80S
Cooling Capacity 10^3Kcal/h 7.9 13.3 21.3 27.8 31.1 41.7 55.5 62.3 83.4 111.1 124.5 166.8 228
KW 9.2 15.5 24.8 32.3 36.2 46.8 64.6 72.4 97 129.2 144.8 194 265.2
Compressor Power(KW) 2.25 3.75 6.3 7.5 8.9 11.5 14.7 17.9 23 29.5 35.8 45 60
Quantity 1 1 1 2 1 2 2 2 2 4 4 4 4
Overall power KW 2.8 4.85 7.8 8.8 10 14.5 18 20.5 28 35.5 42.5 55.3 68.5
Evaporator Form Tank coil type, high efficiency shell and tube type, stainless steel plate type
Water flow(m³/h) 1.4 2.25 4 5 6 8.5 11.2 13 18 22 25 36 47
Interface dimension DN25 DN25 DN25 DN25 DN40 DN40 DN50 DN65 DN65 DN65 DN65 DN65 DN65
Condenser Form Shell & tube type, stainless steel plate type
Water flow(m³/h) 2.2 3.5 5.2 6.5 7.9 10.3 14 16 21 27 33 42 54
Interface dimension DN25 DN25 DN25 DN25 DN40 DN40 DN50 DN50 DN50 DN65 DN65 DN65 DN65
Chilled water pump Power (KW) 0.37 0.55 0.75 0.75 1.1 1.5 2.2 2.2 3 4 4 5.5 5.5
Maximum lift(m) 28 30 28 34 33.5 32 33 28 28 31 31 32 34
Water tank volume L 60 60 120 150 150 200 250 300 350 500 600 600 700
Dimension L(mm) 820 820 1200 1500 1500 1700 1700 1800 1800 1800 2000 2400 2600
W(mm) 470 470 600 650 650 950 1000 1000 1000 1200 1300 1300 1300
H(mm) 1040 1040 1290 1310 1310 1600 1700 1700 1800 1800 1900 2000 2100
Weight KG 150 180 260 350 400 500 650 800 950 1500 1800 2000 2400
Safety Protection Lack of reverse alarm, high and low voltage protection, overload current protection, water shortage alarm, anti-freezing protection, time delay protection
Refrigeration Condition Cooling water inlet 12°C, cooling water outlet 5°C
Cooling water inlet 30°C, cooling water outlet 35°C
Refrigerant
R22,R407C,R410A,R404A,R134A
Power Supply/Voltage 380V/3PH/50HZ(460V/3PH/60HZ,  220V/3PH/60HZ
Kassel offers customised products according to customer requirements: cooling capacity, explosion-proof models, high precision, other special requirements, etc.
